PORTABLE NOISE DOSIMETER AND CALIBRATOR TYPE DS-300

  • Merk : KIMO INSTRUMENTS - PRANCIS
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 3.439 Kali
  • Pembaruan : 04-09-2024 14:18
Dapatkan Spesifikasi Harga PORTABLE NOISE DOSIMETER AND CALIBRATOR TYPE DS-300 Produk Terbaik dari UJI EMISI Environmental Equipment, Science & Laboratory Supply

Produk Detail

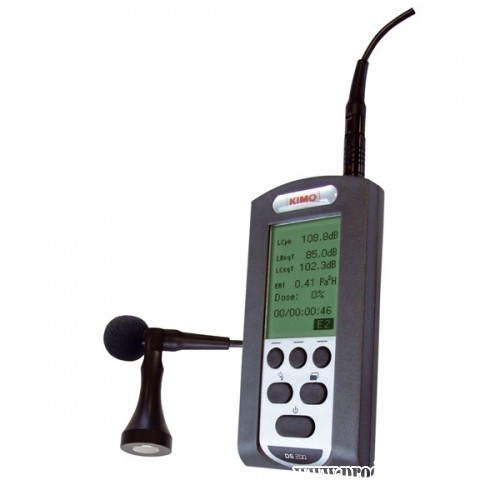

PORTABLE NOISE DOSIMETER AND CALIBRATOR
Type : DS-300
Product : Kimo - Prancis
Fungsi : Alat ukur kebisingan suara pada perorangan

Spesifikasi :
A.  PORTABLE NOISE DOSIMETER
▪  Accuracy : Class 2
▪  Dynamic range V1 : 40-140 (Lq and Lp channels)
                      93-143 dB (peak channel)
▪  Weightings    : A and C, C or Z (peak Channel)
▪  Values            :  LAF, LAS, max, min, LAeq, LCeq, LXec, max,
      min,Lex, d, EAT, DOSE exposure points
      LCpk, LZpk
 ▪  Simultaneous : LAeq -LCeq-Lxeq ((Lq and Lp channels)
      LCpk, LZpk (Peak channel)
▪  Duration LXeq : 1s at 60s (step of 1s)
▪  Sound Pressure : 48 kHz
▪  Microphone          : Type electret, diameter 9.5 mm (3/8'') – 15 mV/Pa
▪  Memory module : Integrated Micro SD 2 Go, Download by USB cable
▪  Storage capacity : 99 event timers (work station)
▪  Power : Internal Li-Ion battery rechargeable
      Battery life : >28 h and according to configuration
▪  Operation Temp : From -10 to +50 °C, 0 to 95%HR
▪  Storage : 0 to 50°C
▪  Dimensions          : 117 x 32 x 58 mm
▪  Standard          : Meet the following standards
      Dosimeter : CEI 61252 (2002) – NF EN 61260
      (1996) – NF EN 61672-1 (2003) – CEI 61260-1995
      /A1 (2001)   61000-6-2 -
      Directive 89/336/CEE - EN 61000-6-1 –
      Electromagnetical compatibility
      Directive 89/336/CEE - EN 61000-6-1 – NF EN
      NF EN 61000-6-2 – NF EN 61000-6-3 –
      NF EN 61000-6-4 (2001)
B.   SOUND CALIBRATOR
▪  Range  : 94 dB ±0,4 dB
▪  Frequency : 1000 Hz ±5 Hz
▪  Accuracy : Class 2
▪  Standard : class 2 of NF EN 60942 : 2003 and CEI 60942 2003 standards.
▪  Power : 2 Alkaline batteries 1,5V
▪  Size : 185(L) x 35(W) x 31 (Thickness)
C.  Complete Unit          Main Unit includes certificate calibration
      94 dB Calibrator with certificate
      Windshield
      Software
      Calibrator adaptor
      Direct microphne
      Manual books
      Transport case
