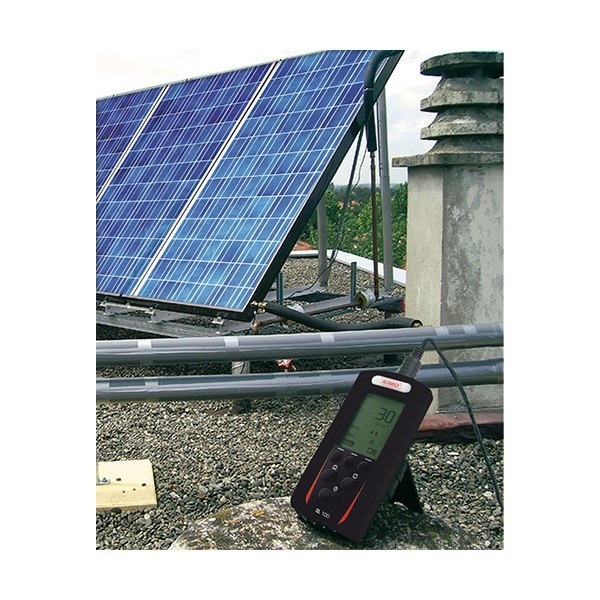

Type : SL-100
Product : Prancis
Fungsi : Alat ukur penyinaran cahaya matahari
Spesifikasi :
| a. Instrument | |||
| ▪ | Solar irrigation range | : | 1 W/m2 to 1300 W/m2 |
| ▪ | Energetic exposure range | : | 1 Wh/m2 to 500 kWh/m2 |
| ▪ | Frequency of measurement | : | 2 / s |
| ▪ | Accuracy | : | 5% of measurement |
| ▪ | Calculation frequency (W/m2) | : | 1 / min (average on 60s) |
| ▪ | Capacity (Wh/m2) | : | 3 days – Results saved when |
| instrument is switched off | |||
| ▪ | Operating temperature | : | from -10°C to +50°C |
| ▪ | Storage temperature | : | from -10°C to +55°C |
| ▪ | Housing dimensions | : | 58 x 120 x 33 mm |
| ▪ | Autonomy | : | more than 72 hours in |
| continuous mode, when using | |||
| a power supply adapter | |||
| ▪ | Power supply | : | 3 LR3-AAA batteries |
| ▪ | Electronic | : | Digital |
| ▪ | Electronic board | : | Varnish |
| ▪ | Conformity | : | in accordance with RoHS directives |
| b. Solar cell | |||
| ▪ | Spectral response | : | from 400 to 1100 nm |
| ▪ | Nominal sensitivity | : | 100mv for 1000W/m2 * |
| ▪ | Response in cosine | : | corrected until 80° |
| ▪ | Coefficient in temperature | : | +0,1%/°C |
| ▪ | Effective area | : | 1 cm2 |
| ▪ | Operating temperature | : | from -30°C to +60°C |
| ▪ | Humidity dependence | : | 100% RH |
| ▪ | UV performance | : | excellent (PMMA filter) |
| ▪ | Mode | : | photovoltaic |
| ▪ | Material | : | polycristallin silicon |
| ▪ | Front face | : | translucent PMMA |
| ▪ | Tightness | : | Polyurethane resin and |
| housing in PMMA and | |||
| polyacetol | |||
| ▪ | Cell weight | : | 60g |
| ▪ | Cell dimensions | : | 30 x 32 mm |
| ▪ | Cable length | : | 1,25 m (can be unplugged) |
| ▪ | Complete unit | : | Tripod, Solar cell, manual |
| book, certificate of | |||
| calibration | |||
