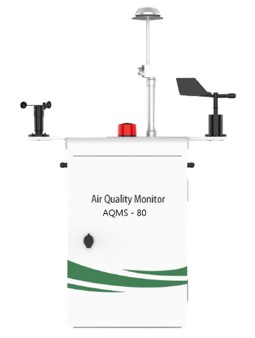

Ambient Air Quality Monitoring
Type : AQMS-HZ80
Product : Unedo Science

Pemantauan Kualitas Udara dan Ambient (AQMS) adalah sistem yang dirancang khusus untuk mengukur dan merekam data tentang kualitas udara di berbagai lokasi dalam waktu nyata.

Spesifikasi :

▪

Measured Parameters

Range

Resolution

-

NO2 (Nitrogen Dioxide)

:

0 - 500 ppb

1 pbb

-

SO2 (Sulfur Dioxide)

:

0 - 500 ppb

1 pbb

-

CO (Carbon Monoxide)

:

0 - 50 ppm

0.1 ppm

-

O3 (Ozon)

:

0 - 500 ppb

1 pbb

-

HC (Hydrocarbon)

:

0 - 10 ppm

1 pbb

-

PM 2.5

:

0 - 1000 µg/m3

1 µg/m3

-

PM10

:

0 - 1000 µg/m3

1 µg/m3

-

Temperature

:

-20 to 50 ˚C

0.1 ˚C

-

Humidity

:

0 - 95% RH

1% RH

-

Wind Speed

:

0 - 30 m/s

0.1 m/s

-

Wind Direction

:

0 - 30 m/s

1 ˚

-

Atmospheric Pressure

:

300 - 1100 hpa

1 hPa

-

Ultraviolet (UV)

:

0 - 1800 w/cm2 (Radiation)

-

Rain gauge

:

0 - 4 mm/min

0.1 mm

▪

Data transmisson mode

:

4G Let Signal output

▪

Display

:

60 inch TV LED

▪

Measurement result

:

Data Download

:

Data Curve

▪

Testing way

:

Pumped / diffused

▪

Sampling Method Particle

:

Pump Suction

▪

Warm up time

:

90 S

▪

IP Grade

:

IP 53

▪

Material

:

Cold rolled steel sheet

▪

Installation

:

Outdoor pole Instalation

▪

Power

:

AC220V / 50 Hz (Solar power Optional)

▪

Consumption

:

80w (Max)
