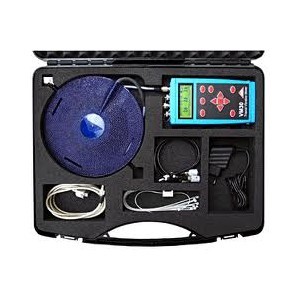

PORTABLE HUMAN VIBRATION METER TYPE VM24
Dapatkan Spesifikasi Harga PORTABLE HUMAN VIBRATION METER TYPE VM24 Produk Terbaik dari
UJI EMISI Environmental Equipment, Science & Laboratory Supply
Produk Detail
Portable Human Vibration MeterType : VM-24
Product : MMF - Germany
Fungsi : Alat ukur paparan getaran mesin pada tubuh
Spesifikasi:
| 1 | Main Unit | |||
| ▪ | Accelerometer | : | 0,1 - 240 m/s²; 0,2 Hz - 10 kHz; | |
| : | 3 Hz - 1 kHz, 1 kHz - 10 kHz | |||
| ▪ | Velocity |
:
|
0,1 - 1000 mm/s; 2 - 300 Hz; 10 - 1000 Hz | |
| ▪ | Displacement | : | 0,01 - 60 mm; 2 - 300 Hz | |
| ▪ | Bearing Diagnosis Coefficient | : | 1 - 10 kHz; with memory for 1600 rms/peak start values | |
| ▪ | Accuracy Vibration | : | ± 5 % ± 2 Digits | |
| ▪ | Data Memory | : | 16000 values; USB interface optional PC software for data | |
| ▪ | Display | : | OLED graphical display; colored; 128 x 160 pixels | |
| ▪ | Power Supply | : | 3 x LR03 / HR03 / AAA 8 - 12 h; USB supply | |
| ▪ | Dimension/weight | : | 125mm x 65mm x27mm; 140g with battre and without sensor | |
| 2 | Accelerometer | |||
| ▪ | Type | : | Piezoelectric shear accelerometer with low-power | |
| : | IEPE output; M12 connector;integral magnet, | |||
| : | VMID read contact in base | |||
| ▪ | Sensitive | : | 3,5 mV/ms-2 | |
| ▪ | Transverse sensitivity | : | < 5 % | |
| ▪ | Dimensions, weight | : | Ø 21, Height 34mm (without connector 53 g) | |
| ▪ | Accessories | : | Vibration sensor | |
| : | USB Cable | |||
| : | Instruction Manual | |||
| : | Plastic Case |
