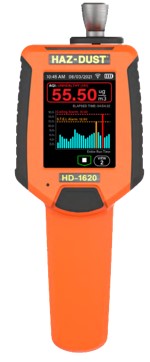

Type : HD-1620
Product : Haz Dust - USA
Fungsi : Alat ukur debu TSP, PM10, PM5.0, PM4.0, PM2.5, PM1.0, Temperature, Humidity, Barametrics dan GPS
Spesifikasi:
| ▪ | Sensing Range | : | 1-500,000ug/m3 | ||||||||||||||
| ▪ | Particle Size Range | : | 0.1-100 um | ||||||||||||||
| ▪ | Precision | : | 0.002 mg/m3 or 2 ug/m3 | ||||||||||||||
| ▪ | Accuracy | : | +/- 10% to filter gravimetric SAE fine test dust | ||||||||||||||
| ▪ | Zero Stability | : | ± 0.001 mg/m3 or 1 ug/m3 | ||||||||||||||
| ▪ | Humidity | : | 95% non condensing | ||||||||||||||
| ▪ | Temperature | : | 0-50 C or 32- 122F | ||||||||||||||
| ▪ | Real-Time Display | : | Time: Hours, Min, sec, 12 & 24 hr Date | ||||||||||||||
| : | Data Display: Concentration mg/m3, ug/m3, PM/cm3, | ||||||||||||||||
| ▪ | Flow Rate | : | 1.5LPM User adjustable | ||||||||||||||
| ▪ | Recording Time | : | 1 s. to 15 days | ||||||||||||||
| ▪ | Sampling Rate | : | 1 sec., 4 sec., 10 sec., and 60 sec | ||||||||||||||
| ▪ | Battery | : | Lithium Ion Pack, 7.4 Volt 3350 mAh, 24.79 watts. | ||||||||||||||
| ▪ | Operating Time | : | 10 hours | ||||||||||||||
| ▪ | Data Storage | : | 43,200 data points | ||||||||||||||
| ▪ | Memory Storage | : | > 5 years | ||||||||||||||
| ▪ | Dimensions | : | Instrument: 10″ x 3.5″ x 1.5″, Display 3,5", Weight 1,4 lbs | ||||||||||||||
| ▪ | Complete Unit | : | Impator for TSP, PM10, PM2,5, PM1.0, PM5.0, PM4.0 | ||||||||||||||
| : | Impactor Grease, Cleaning Kit | ||||||||||||||||
| : | Battre charger, download cable, flow adapter | ||||||||||||||||
| : | Hand strap, software, calibration certificate | ||||||||||||||||
| : | Carrying case | ||||||||||||||||
