SOUND LEVEL METER AND CALIBRATOR TYPE 6236 || ALAT UKUR KEBISINGAN SUARA

  • Merk : ACO - JAPAN
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 3.278 Kali
  • Pembaruan : 06-09-2024 09:55
Dapatkan Spesifikasi Harga SOUND LEVEL METER AND CALIBRATOR TYPE 6236 || ALAT UKUR KEBISINGAN SUARA Produk Terbaik dari UJI EMISI Environmental Equipment, Science & Laboratory Supply

Produk Detail

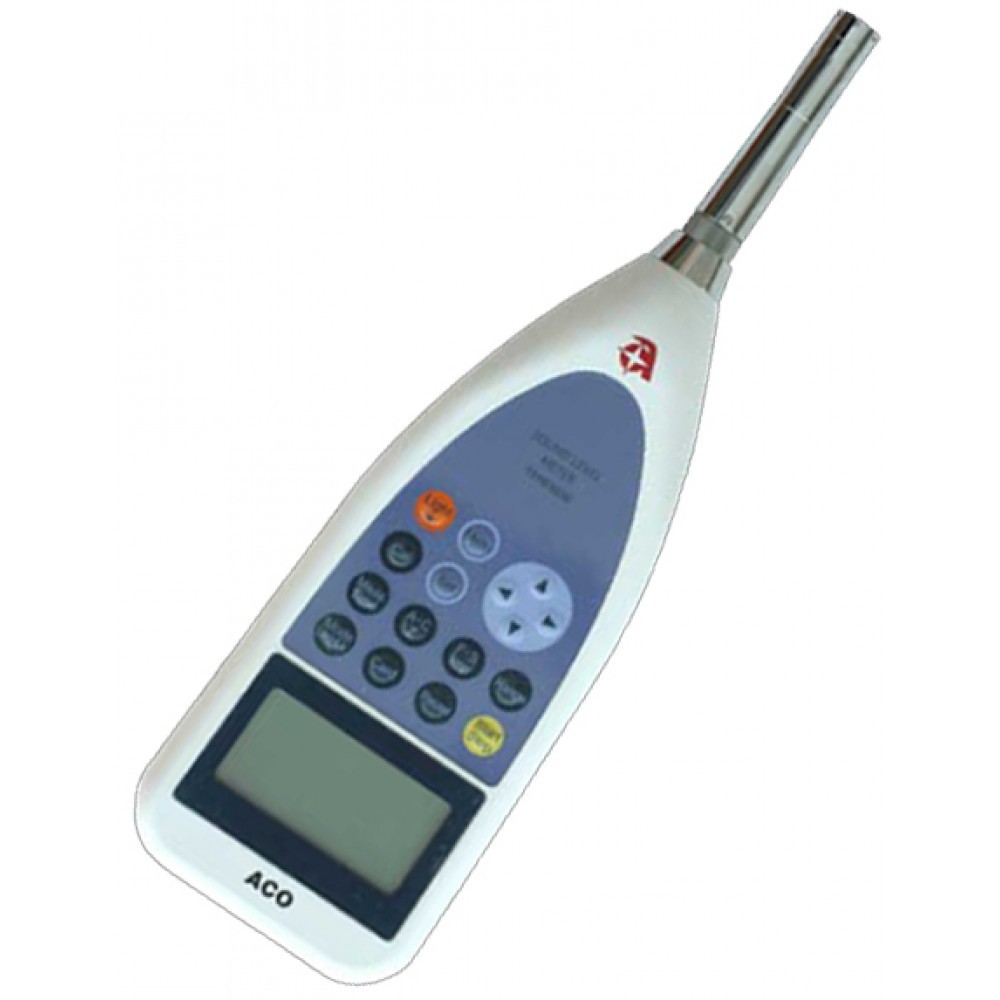

SOUND LEVEL METER TYPE 2 AND CALIBRATOR
Type : 6236
Product : Aco - Japan
Fungsi : Alat ukur kebisingan suara

Spesifikasi :
 A.  Sound Level Meter
  Level Range : 20~80dB
      20~90dB
      20~100dB
      20~110dB
      30~120dB
      40~130dB
      0~80dB
      0~dB function in ON
  Frequency Range  : 20Hz～20kHz
      20Hz～8kHz (Low)
  Linearity Range  : 100dB
  Measurement : SPL, SPL-A, SPL-C, LAeq, LAe, LAmax, LAn,
      Lpeak, Lcpeak, LAtm5, LAi, LAieq
  Weighting Level    : (A) 28~130dB (0~80 dB/0 - dB function in ON)
      (C) 36~130dB
      (Z) 40~130dB (Flat)
      (C) 55~141dB (Peak)
      (Z) 60~141dB (Flat)
  Time Weighting  : Fast, Slow, Impulse
  Freq. Weighting : A, C, Z (FLAT)
  Measurement Time : 1s/3s/5s/10s/1min/5min/10min/15min/
      30min/ 1h/8h/12h/24h
  Display : Liquid crystal and Backlight(128×64 points)
  Date        : year/month/day/hour：minute：second
  Standard      : JIS C1509-1:2005 Class II
      IEC 61672-1:2002 Class II
B.  Octave Real-time Analysis
  Measurement mode : Sound pressure level(Lp)
      Equivalent continuous sound pressure level(Leq)
      Sound exposure level(LE)
      Maximum sound pressure level(Lmax)
  1/1-octave filter : 16Hz,31.5Hz,63Hz,125Hz,250 Hz,500Hz,
      1 kHz, 2kHZ, 4kHz,8kHz,AP,OA
  1/3-octave filter : 12.5Hz,16Hz,20Hz,25Hz,31.5Hz,40Hz,50Hz,
      63Hz, 80Hz, 100Hz,125Hz,160Hz,200Hz,
      250Hz, 315Hz, 400Hz,500Hz,630Hz,800Hz,
      1kHz,1.25kHz,1.6kHz, 2kHz,2.5kHz,3.15kHz,
      4kHz,5kHz,6.3kHz,8kHz,10kHz,12.5kHz,
      16kHz,AP,OA
  Step Level range : 10~80dB, 20~90dB, 30~100dB, 40~110dB,
      50~120dB, 60~130dB (-10~60dB, 0~70dB,
      10~80dB/0-dB  function in ON)
C.  Sound Calibrator
  Range        : 94 dB
  SPL tolerance    : ±0,3 dB
  Nominal Frequency : 1000Hz
  Frequency Tolerance : ±0,1%
  Cover Microphone :  Measurement Microphone 1-inch and 1/2-inch
      (Included 1/2-inch microphone Adapter)
D.  Complete Unit : Mirophone / preamp
    : Windscreen
    : SD card
    : Sound Calibrator
    : Octave Real-time 1/1-1/3
    : Exlusive printer
    : RS232 interface cable
    : Roll Paper 10 pcs
    : Software
    : Certificate Calibration
    : Screw driver
    : Software
