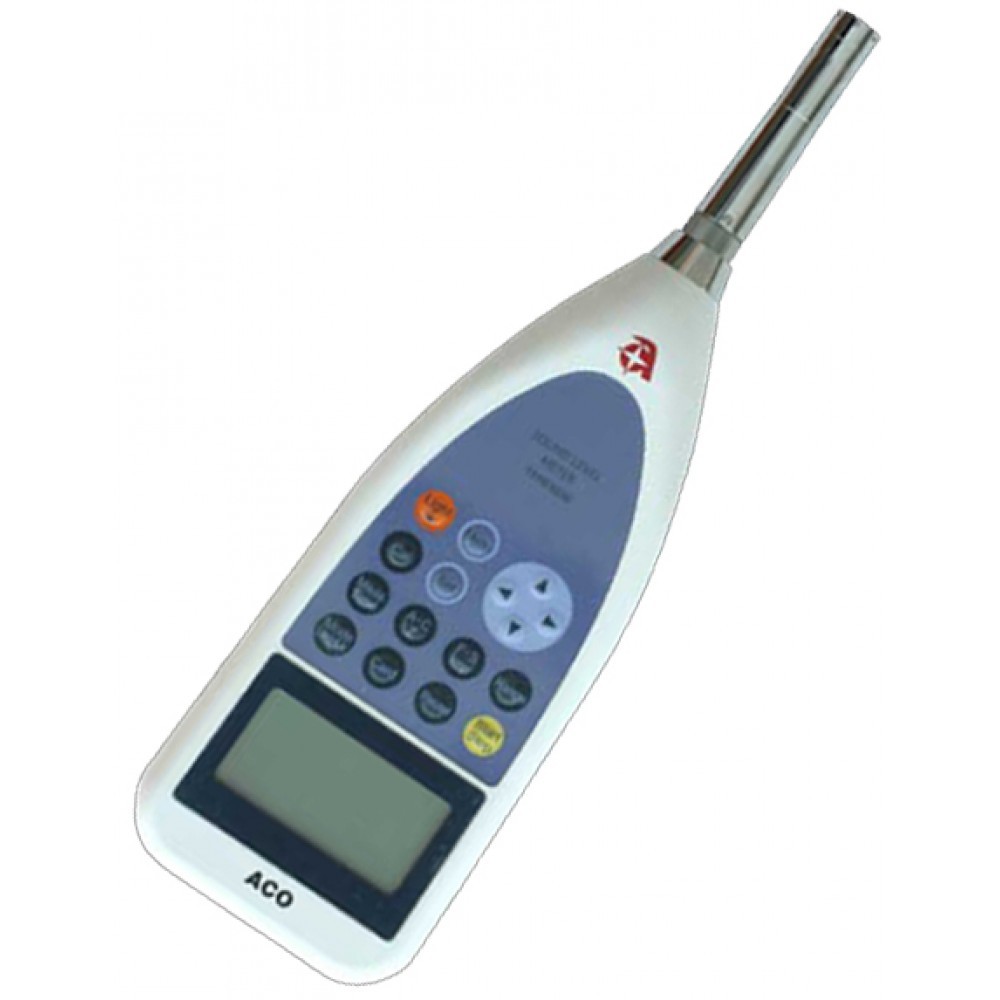

SOUND LEVEL METER TYPE 1 AND CALIBRATOR TYPE 6238-ACO

  • Merk : ACO - JAPAN
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 1.591 Kali
  • Pembaruan : 05-09-2024 10:08
Dapatkan Spesifikasi Harga SOUND LEVEL METER TYPE 1 AND CALIBRATOR TYPE 6238-ACO Produk Terbaik dari UJI EMISI Environmental Equipment, Science & Laboratory Supply

Produk Detail

SOUND LEVEL METER TYPE 1 AND CALIBRATOR
Type : 6238
Product : Aco - Japan
Fungsi : Alat ukur kebisingan suara

Spesifikasi :
A.  Sound Level Meter
▪ Level Range  : 20~80dB
      20~90dB
      20~100dB
      20~110dB
      30~120dB
      40~130dB
      0~80dB
      0~dB function in ON
▪ Frequency Range : 5Hz～20kHz, 20Hz～12.5kHz (Low)
▪ Linearity Range   : 100dB
▪ Measurement    : SPL, SPL-A, SPL-C, LAeq, LAe, LAmax, LAn,
      Lpeak, Lcpeak, LAtm5, LAi, LAieq
▪ Weighting Level : (A) 28~130dB (0~80dB/0-dB function in ON)
    : (C) 37~130dB
    : (Z) 39~130dB (Flat)
    : (C) 55~135dB (Peak)
    : (Z) 60~135dB (Flat)
▪ Time Weighting : Fast, Slow, Impulse
▪ Freq. Weighting  : A、C、Z(FLAT)
▪ Measurement Time : 1s/3s/5s/10s/1min/5min/10min/15min/
      30min/1h/8h/12h/24h
▪ Display : Liquid crystal and Backlight(128×64 points)
▪ Date        : year/month/day/hour：minute：second
▪ Standard      : JIS C1509-1:2005 Class II
      IEC 61672-1:2002 Class II
B.  Octave Real-time Analysis
▪ Measurement mode   : Sound pressure level(Lp)
      Equivalent continuous sound pressure
      level(Leq), Sound exposure level(LE)
      Maximum sound pressure level(Lmax)
▪ 1/1-octave filter : 16Hz,31.5Hz,63Hz,125Hz,250 Hz,500Hz,
      1kHZ, 2kHZ, 4kHz,8kHz,AP,OA
▪ 1/3-octave filter : 12.5Hz,16Hz,20Hz,25Hz,31.5Hz,40Hz,50Hz,
      63Hz, 400Hz,500Hz,630Hz,800Hz,1kHz,
      1.25kHz,1.6kHz, 2kHz,2.5kHz,3.15kHz, 4kHz,
      5kHz,6.3kHz,8kHz, 10kHz,12.5kHz, 16kHz,
      AP,OA  80Hz, 100Hz,125Hz,160Hz,200Hz,
      250Hz, 315Hz,
▪ Step Level range : 10~80dB, 20~90dB, 30~100dB, 40~110dB,
      50~120dB, 60~130dB (-10~60dB, 0~70dB,
      10~80dB/0-dB  function in ON)
C.  Sound Calibrator
▪ Range : 94 dB
▪ SPL tolerance    : ±0,3 dB
▪ Nominal Frequency : 1000Hz
▪ Frequency Tolerance : ±0,1%
▪ Cover Microphone  : Measurement Microphone 1-inch and 1/2-inch
      (Included 1/2-inch microphone Adapter)
D.  Complete Unit : Mirophone / preamp
    : Windscreen
    : SD card
    : Sound Calibrator
    : Octave Real-time 1/1-1/3
    : Exlusive printer
    : RS232 interface cable
    : Roll Paper 10 pcs

    : Screwdrive
    : Software
