Produk Detail

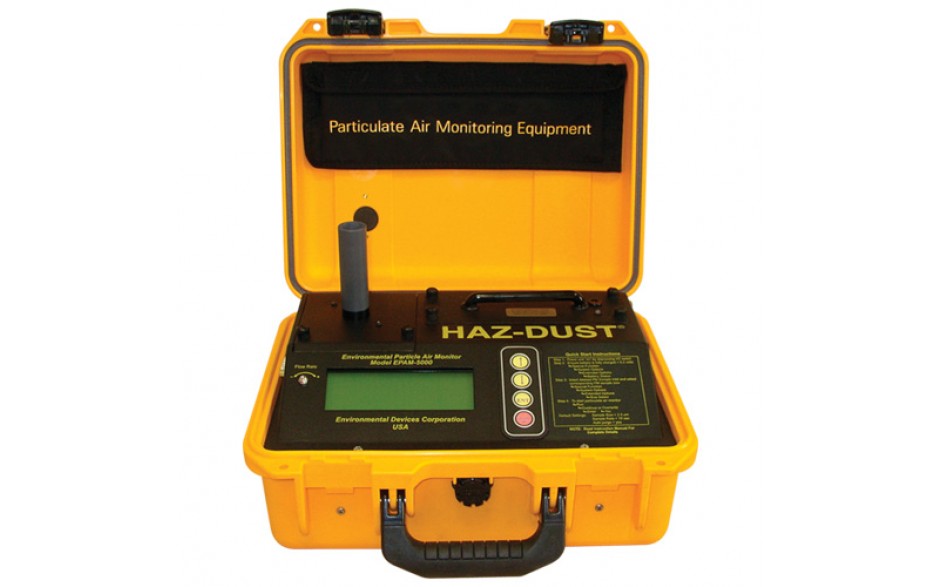

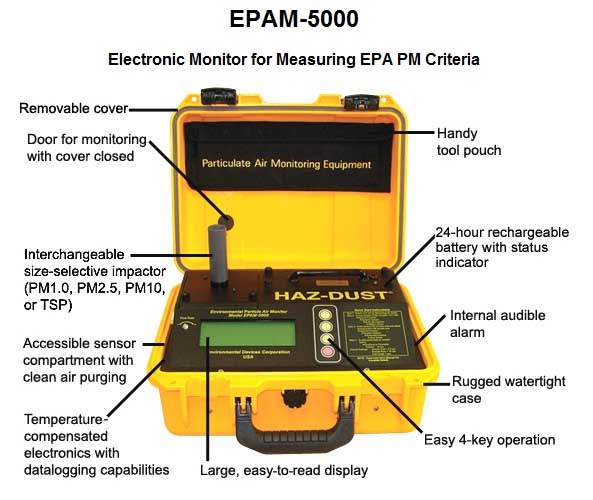

Enviromental Particulate Air Monitoring
Type       : Epam 5000
Product  : Haz Dust -  USA

Epam 5000 Haz Dust adalah sebuah alat ukur yang digunakan untuk mengukur konsentrasi partikel debu pada udara ambien secara direct atau langsung. Alat ini dapat menampilkan secara langsung hasil pengukuran secara real time ukuran partikel yang dapat diukur mulai dari <10mm P(PM100, <2.5 mm (PM2.5), dan total debu (TSP).



Spesifikasi:

•	Display	:	Large alphanumeric LCD-4 Line, 20 character display
•	Operation	:	Four key splash proof membarane switch-menu driven
•	Accuracy	:	±10% to filter gravimetric SAE fine test dust
•	Sensing range	:	0.001-20.0 mg/m3 or  0.01-200.0mg/m3(optional)
•	Particle size	:	0.01-100µm
•	Precision	:	± 0.003 mg/m3
•	Flow rate	:	1.0 - 5.0 liters/minute
•	Filter cassette	:	47mm FRM style
•	Recording time	:	1 sec to 15 months
•	Sampling rate	:	1 sec., 10 sec., 1min., and 30 min
•	Data storage	:	21,600 data points
•	Memory & time	:	>5 years
•	Real time clock	:	Hours., min., sec., day., month., year
•	Data display	:	Concentration in mg/m3 & TWA, MAX, MIN, STEL, Date, Time
•	Digital output	:	RS-232
•	Operating Temp.	:	-10˚C to 50˚C
•	Storage Temp.	:	-20˚C to 70˚C
•	Software	:	WindowsTM driven for graphical and data translation
•	Power	:	Rechargeable and Interchangeable battery
•	Operating time	:	>24 hours on battery
•	Charger time	:	approx. 22 hours
Accessories:
•	Battery Charger
•	47mm filter holder 0.5EPA
•	47mm Glass Fiber Filter for Gravimetric Analysis(100 sheet)
•	Impactor for PM1.0, PM2.5, and PM10
•	Calibration Standard - for verifying calibration
•	Cleaning kit
