TRIAXIL VIBRATION METER || BUILDING VIBRATION METER


  • Harga: CALL

  • Merk: VM-40C

  • Minimal Pembelian: 1 Unit

  • Pembelian Maksimal: 1 Unit

  • Pengiriman: 3 hari sejak pembayaran

  • Lokasi: Jawa Barat - Depok

  • Dilihat: 3.399 Kali

  • Pembaruan: 25-01-2023 08:18

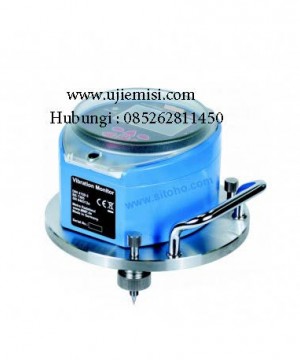

TRIAXIAL VIBRATION METER || BUILDING VIBRATION METER
Type : VM-40C
Product : Germany

Building Vibration Meter VM40C adalah alat ukur getaran terhadap gedung atau bangunan lainnya, Building Vibration Measurement sangat cocok untuk monitoring getaran terhadap bangunan karena adanya ledakan, pemasangan tiang pancang atau paku bumi, getaran mobil / alat berat dengan tonase tinggi sehingga mengakibatkan bangunan retak.

Spesifikasi :
▪ Standard : DIN 4150-3, BS 7385, SN 640312a
▪ Tranduser : Triaxial piezoelectric shear type accelerometer
▪ Measuring range : Acceleration : 0.01 - 15 m/s²
    ST-130_ Noise Dose Meter
:
Velocity : 0.01-2400 mm/s at 1 Hz 0.1-30 mm/s at 80 Hz
▪ Frequency range : 0.8 - 100 Hz
    : 0.8 - 395 Hz
    : 5 - 150 Hz
▪ Display : LCD with backlight, 128 x 64 pixel, 32 x 60mm²
▪ Display data : 3 peak/ pp values (X / Y / Z)
▪ Data storage : max 100.000 data
▪ Celuler com. : 4G (LTE B3, B8, B20)
    : 2G (E-GSM-900, DCS-1800)
▪ USB connection : USB 2.0 full speed via 8 pin connector
▪ PC-Software : Free software tool for archiving and report
▪ Protection Grade : IP67 EN 60529
▪ Dimension/weight : 150 x 140 x 80mm / 2 kg
▪ Accessories : Battre Charge
    : USB Cable VM2x-USB
    : Tripod floor plate
    : 2G/4G celluler modem

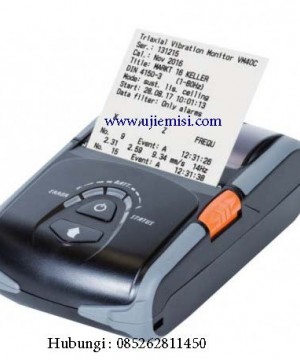

    : Mobile report printer with battery
    : Alarm Beacon with batteries
    : Seismic sensitivy 100 mV/g ± 5%
    : USB interface for 2 channel 0.3 to 2000 Hz
    : Analyzer software instrument, only acceleration
    : Vibration swith RMS/ peak / FFT Monitoring
